1. Introduction: From Heavy Dozers to Specialized Pipeline Equipment
Heavy earthmoving operations are traditionally dominated by crawler bulldozers. However, unique machinery is required for cross-country oil and gas pipeline construction. Extreme slopes, soft soils, and narrow corridors are frequently encountered on job sites.

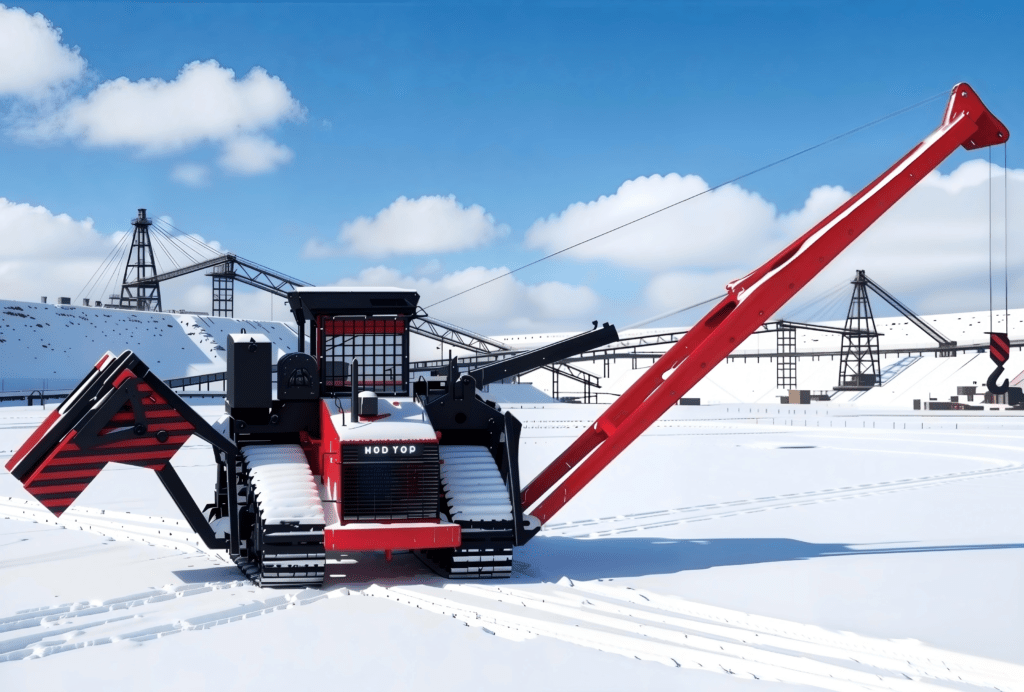

To meet these demanding conditions, side-boom pipelayers were engineered as specialized derivatives of heavy-duty bulldozers. Maximum structural durability and stability are inherited from robust bulldozer chassis technology.
2. Limitations of Traditional Mechanical Pipelayers
Traditional mechanical transmission systems present severe limitations in modern pipeline operations:
- Imprecise Positioning: Millimeter-level precision is required during pipe placement. Smooth micro-movements are difficult to achieve with mechanical gears.
- Power Interruption: Power flow is momentarily lost during gear shifting. Safety hazards are created when heavy loads are handled on steep inclines.
- Higher Operator Fatigue: Constant manual clutch and gear adjustments are required. Operational efficiency is reduced over long shifts.
3. The Hydrostatic Solution: HopTop TP Series Advantages
Operational bottlenecks are eliminated by high-drive hydrostatic drive systems. Stepless speed regulation, continuous traction, and superior load management are delivered across all working conditions.
TP Series Model Coverage
A comprehensive range of lifting capacities is provided to meet diverse pipeline project requirements:
| Pipelayer Model | Max. Lifting Capacity (T) | Engine Model | Operating Weight (T) |
| TP25H | 25 | SC7H210 | 24.2 |
| TP45H | 45 | SC9DK240 | 33.5 |
| TP70H | 70 | SC10E325 | 46.6 |
| TP90H | 90 | SC12E375 | 58.5 |
Comprehensive Technical Specifications
Detailed performance data for all HopTop hydrostatic pipelayers is presented in the comprehensive table below:
| Technical Parameters | TP25H | TP45H | TP70H | TP90H |
| Rated Power (kW/rpm) | 155 / 2000 | 175 / 2000 | 239 / 2000 | 275 / 2000 |
| Max. Traction Force (KN) | 234 | 304 | 426 | 568 |
| Boom Height (mm) | 6,800 | 7,800 | 8,970 | 9,934 |
| Grounding Length (mm) | 3,206 | 3,206 | 3,700 | 4,220 |
| Counterweight (T) | 2.20 | 5.32 | 7.40 | 9.90 |
| Fuel Tank Capacity (L) | 300 | 420 | 530 | 530 |
Key Performance Benefits
- Unmatched Lifting Range: Heavy pipe sections from 25 tons up to 90 tons are easily handled by the TP series. Heavy lifting capacity up to 90 tons is supported by the top-tier TP90H model.
- High Traction & Slope Stability: Massive pulling power up to 568 KN is provided by the SC12E375 engine on the TP90H. Slippage on muddy slopes is prevented by extended track grounding lengths (up to 4,220 mm).
- Millimeter-Level Control: Variable hydraulic flow is controlled continuously. Lowering and position adjustments are executed smoothly without sudden jerks.
- In-Place Counter-Rotation: Independent track drives allow spot turning. Maneuverability in narrow trenching environments is greatly enhanced.
4. Conquering Extreme Terrains: Unmatched Application Performance
Pipeline projects are often built in harsh and unforgiving environments. Extreme conditions are easily handled by HopTop high-drive hydrostatic pipelayers. Exceptional adaptability is demonstrated in the following scenarios.
Steep Slopes and Mountainous Terrains Severe safety risks are posed by mountainous slopes. Uninterrupted power is safely delivered by the hydrostatic transmission. Sudden power loss during gear shifts is completely eliminated. Superior stability is provided by the high-drive chassis. The center of gravity is effectively optimized by the low-position track rollers. Rollover risks are drastically minimized.
Muddy Wetlands and Soft Soils Heavy construction machines are easily trapped by soft soils. Sinking is prevented by our extended track design. An impressive grounding length of 4,220 mm is featured on the TP90H model. Ground pressure is effectively dispersed across the tracks. Excellent traction is consistently maintained in muddy conditions.
Narrow Trenches and Confined Corridors Operating space is severely restricted near pipe trenches. Tight spaces are navigated easily by our equipment. In-place counter-rotation is executed flawlessly by the independent track drives. Precise pipe alignment is achieved with millimeter-level micro-control. Blind spots are reduced. Overall job site safety is greatly improved.
5. Maximizing ROI: Lower Total Cost of Ownership (TCO)
The initial purchase price is only one part of the equipment investment. Long-term operational costs are significantly reduced by the HopTop hydrostatic design. Outstanding Return on Investment (ROI) is generated for contractors.
Drastically Reduced Maintenance Traditional mechanical gears, clutches, and steering brakes are completely eliminated. Wear-and-tear components are minimized. Daily inspection time is significantly cut down. Costly maintenance downtime is avoided.
Enhanced Fuel Efficiency Engine output is continuously optimized by advanced hydraulic pumps. Fuel waste is prevented during heavy lifting operations. Power is distributed precisely where it is needed. Operational fuel costs are lowered over the machine’s lifespan.
Extended Equipment Lifespan Mechanical shocks to the transmission are absorbed by the hydraulic oil. Core driveline components are protected from sudden impacts. Maximum durability is guaranteed by our 25 years of source factory manufacturing expertise. Reliable performance is sustained for decades.
6. Conclusion & Call to Action
Construction efficiency and job site safety are significantly upgraded with high-drive hydrostatic technology. A complete spectrum of lifting capacities—from the versatile TP25H to the heavy-duty TP90H—is manufactured by HopTop to fulfill global pipeline project demands.
