Suitable for Most Large-scale Working Sites

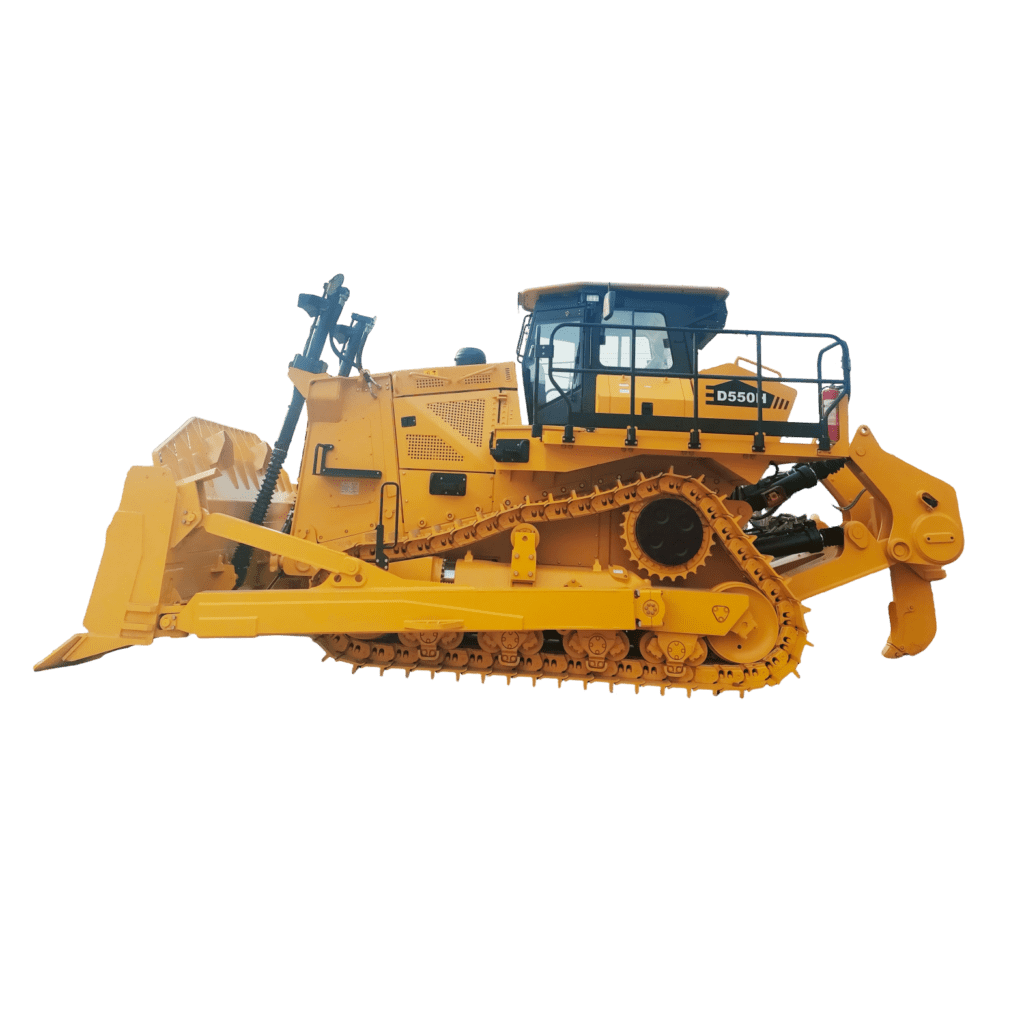

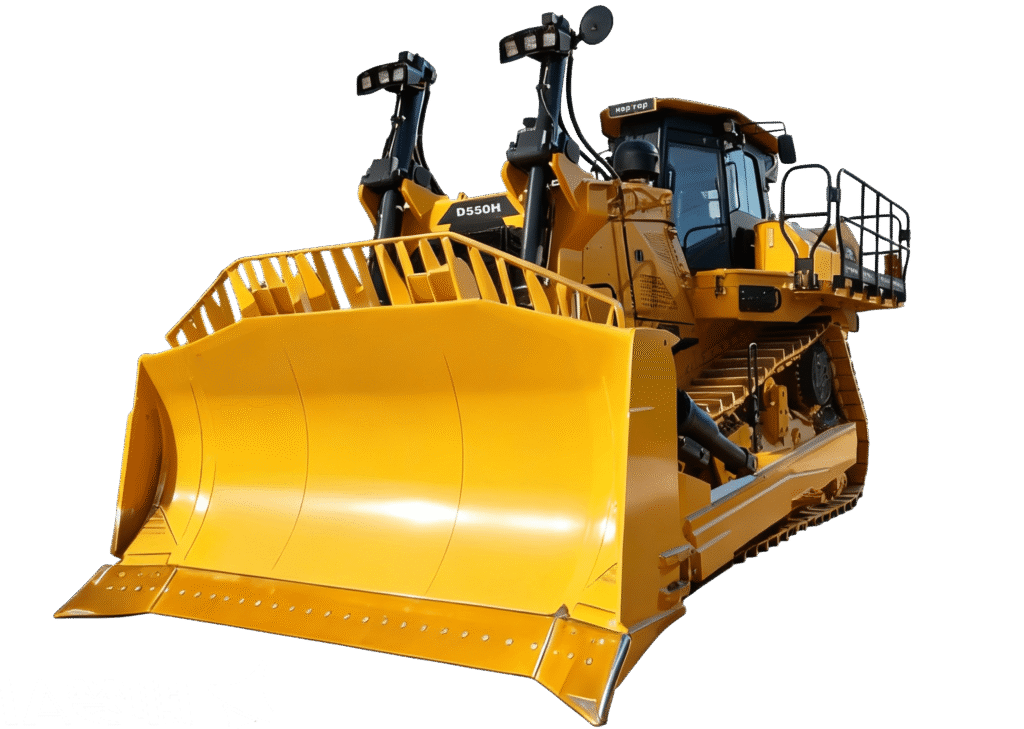

Hydrostatic Crawler Bulldozer

D550H

ENGINE：VOLVO PENTA TAD1650VE-B

RATED POWER：405 kW/1900 RPM

OPERATING WEIGHT：55.4T

The hydrostatic system in HopTop D550H bulldozer simplifies the power transmission route. The high-position drive structure keeps the transmission components away from complex soil and stones, avoiding impact damage, improving the working environment of the transmission components, and extending their service life.

Compare Models
Rated power(kW/rpm)
405/1900
Tractive force(kN)
709
Width of track shoe(mm)
610
Grounding length(mm)
3634
Operating weight (without ripper)(T)
55.4
Dozing capacity(m³)
13.7
Dimension (without ripper)(mm)
6960x4340x4214
Ground clearance(mm)
530
MAX. Digging depth(mm)
606
MAX. Lifting height(mm)
1014
  • Engineered for exceptional versatility and high-efficiency earthmoving, the D550H hydrostatic bulldozer features a high-performance, VOLVO PENTA TAD1650VE-B turbocharged engine combined with an advanced dual-path hydrostatic transmission (HST) system. This closed-loop hydrostatic setup automatically balances speed and torque under changing loads, eliminating the need for traditional gearboxes and torque converters, ensuring seamless power transfer and outstanding fuel economy.
  • The advanced travel control system allows the D550H to achieve counter-rotation, power turns, and infinitely variable speed control. The hydraulic-assisted steering and single-joystick electronic control deliver effortless, ultra-precise maneuverability, dramatically reducing operator fatigue while maximizing site productivity.
  • Equipped with a standard high-capacity straight-tilt blade, the D550H track-type tractor offers formidable cutting force and optimized tilting performance for precision grading and heavy-duty pushing. At the rear, it can be configured with an optional three-shank ripper or single-shank ripper, allowing it to effortlessly penetrate and loosen hard clay, frozen soil, and compacted materials. Built on a rugged, durable undercarriage system, it ensures long-lasting reliability across harsh terrains.
  • The premium operator cabin is designed with an integrated ROPS/FOPS structure for maximum safety. It features a spacious interior, panoramic visibility, and high-efficiency soundproofing to guarantee a low-noise, dust-free working environment. For user-friendly maintenance, the D550H integrates a wide-opening engine hood and centralized electrical control, alongside centralized pressure measurement points, making routine inspection and servicing exceptionally convenient.
  • This versatile earthmoving machinery is perfectly suited for road building, infrastructure projects, mining, and landscaping, making the D550H an indispensable piece of heavy equipment for global construction challenges.

DOWNLOAD THE CATALOG:

D550H
CONTACT US

FAQ

Q1: How do you guarantee bulldozer quality before shipment?

We are China's only manufacturer that conducts on-site full-load testing after assembly. After testing, we replace oil and filters, delivering machines ready for reliable, trouble-free operation.

Q2: Are customization and OEM services available for your products?

Yes. We provide non-standard customization and ODM/OEM services to meet customer demands. With an annual capacity of over 1,000 units, we efficiently handle all kinds of orders.

Q3: What after-sales service do you offer?

Our ABC service program, sufficient spare parts supply, and professional team guarantee dependable support, including parts provision and on-site commissioning in more than 70 countries.

RELATIVE EQUIPMENTS

D160H

Hydrostatic Crawler Bulldozer

Read more

D130H

Hydrostatic Crawler Bulldozer

Read more

D260H

Hydrostatic Crawler Bulldozer

Read more

D200HS

Hydrostatic Crawler Bulldozer

Read more
close menu icon

Learn more about the highlights of our bulldozers

exploring our products more

HopTop – A bulldozer manufacturer dedicated to R&D and production.

REQUEST
Facebook Youtube Huge-wechat Whatsapp Tiktok

Let us know the product you’re looking for, and we’ll get in touch with you once we receive your request.

COMPARE MODELS

HYDROSTATIC BULLOZERS

D130H
D160H
D200H
D200HS
D260H
D550H
ENGINE MODEL
RATED POWER
OPERATING WEIGHT

Tractive force

Dozing capacity
Dimension (NO RIPPER)
Ground clearance
GROUND LENGTH
WIDTH OF TRACK SHOE
MAX.LIFTING HEIGHT

MAX. DIGGING DEPTH

WP6G125E332
97KW/2000RPM
13.1 T
212 KN
3.1 m³

4922X3060X2999 mm

315 mm
2640 mm
510 mm
950 mm
460 mm
SC7H170.1G3
125KW/2000RPM
16.3 T
230 KN
3.5 m³

5565X3400X3310 MM

418 mm
2611 mm
510 mm
1028 mm
485 mm
SC7H210.1G3
155KW/2000RPM
19.8 T
258 KN
4.3 m³

5498X3512X3550 MM

480 mm
2611 mm
510 mm
1120 mm
520 mm
SC7H210.1G3
155KW/2000RPM
21.4 T
258 KN
3.8 m³

5143X4150X3550 MM

490 mm
2871 mm
950 mm
1010 mm
485 mm
SC9DK290.1G3
214KW/2000RPM
24.3 T
307 KN
6.5 m³

6095X3640X3900 MM

480 mm
3050 mm
560 mm
1247 mm
540 mm
VOLVO165VE-B
405KW/1900RPM
55.4 T
709 KN
13.7 m³

6960X4340X4214 MM

530 mm
3634 mm
610 mm
1014 mm
606 mm

download request

COMPARE MODELS

ROAD ROLLERS

BW101D
BW101S
BW106HD
BW121D-2
Operation weight
Static linearity
Amplitude

Vibration frequency

Centrifugal force

Speed range

Climbing capability
Engine Brand
Emission standard
Engine power
Dimensions
10000 kg
285 N/cm
1.6/ 0.8 mm
30 Hz
170/85 kN
0-9 km/h
42 %
WEICHAI
China-II
97.5 kW
5940x2275x2800 mm
10000 kg
238 N/cm
1.6 mm
30 Hz
140 kN
0-9 km/h
30 %
WEICHAI
China-II
97.5 kW
5940x2275x2800 mm
10600 kg
249/249 N/cm
0.8/0.4 mm
42/50 Hz
120x2/80x2 kN
0-12 km/h
30 %
WEICHAI
China-III
103 Kw
4920x2250x3200 mm
12000 kg
333 N/cm
1.6/0.8 mm
30 Hz
200/100 kN
0-9 km/h
42 %
WEICHAI
China-II
97.5 kW
5940x2280x2800 mm

COMPARE MODELS

EXCAVATORS

TE220
TE330
TE550
ENGINE MODEL
RATED POWER
Bucket digging force

Arm digging force

Bucket capacity
Travel speed
Traction force
Operating weight
Dimension
MAX. excavation height

MAX. unloading height

MAX. Digging deptht
CUMMINS 6B5.9 /ISUZU 4HK1X
133KW/2000RPM
159 KN
107.3 KN
0.9-1.2 m³

5.8/ 3.2 km/h

220 KN
22.4 T
9390x2780x3120 mm
9237 mm
6526 mm
6603 mm
CUMMINS 6CTAA8.3
194KW/2200RPM
208 KN
157 KN
1.4-1.6 m³

5.2/ 3.3 km/h

279 KN
32.1 T
11080x3190x3278 mm
10200 mm
7135 mm
7370 mm
CUMMINS QSM11
333KW/1800RPM
272.2 KN
263.9 KN
2.9-3.2 m³

5.15/ 2.9 km/h

418 KN
51 T
11919x3490x3280 mm
9751 mm
6634 mm
6926 mm

COMPARE MODELS

MOTOR GRADERS

TG19
TG21
TG24
ENGINE MODEL
GROSS POWER
MAX. Tractive force

MAX. Torque

Rated Fuel Consumption
Emission
Operating Weight
Overall Length (Standard)
Height
Moldboard Width

MAX. DIGGING DEPTH

CUMMINS 6CTAA5.9-C205
153KW/2200RPM
84 KN
760N.m/1300-1500 rpm
223 g/kW.h

China-II

15.8 T
9270 mm
3400 mm
2600 mm
3550/3965 mm
CUMMINS 6CTAA8.3-C215
160KW/2200RPM
88 KN
980N.m//1500 rpm
223 g/kW.h

China-II

16.8 T
9270 mm
3400 mm
2600 mm
3965/4270 mm
WEICHAI WP7G240E301
176KW/2200RPM
101.5 KN
1100N.m//1300-1500 rpm
220 g/kW.h

China-II

18.5 T
9445 mm
3560 mm
2790 mm
3965 mm

COMPARE MODELS

PIPELAYERS

High-drive hydrostatic pipe layer for pipeline construction
TP25H
High-drive hydrostatic pipe layer for pipeline construction
TP45H
High-drive hydrostatic pipe layer for pipeline construction
TP70H
High-drive hydrostatic pipe layer for pipeline construction
TD90H
ENGINE MODEL
RATED POWER
OPERATING WEIGHT

Tractive force

Ground length

WIDTH OF TRACK SHOE

TOTAL RATED LIFTING CAPACITY
BOOM HEIGHT
sc7h210
155KW/2000RPM
24.2 T
234 KN
3206 mm
560 mm
25 T
6800 mm
sc9dk240
175KW/2000RPM
33.5 T
304 KN
3206 mm
710 mm
45 T
7800 mm
SC10E325
239KW/2000RPM
46.6 T
426 KN
3700 mm
760 mm
70 T
8970 mm
SC12E375
275KW/2000RPM
58.5 T
568 KN
4220 mm
910 mm
90 T
9934 mm

COMPARE MODELS

HYDRO-MECHANICAL BULLOZERS—td22 platform

TD17
TD17E
TD17F
TD17C
TD17S
TD17R
ENGINE MODEL
RATED POWER
OPERATING WEIGHT

Tractive force

Dozing capacity
Dimension (NO RIPPER)
Ground clearance
GROUNDING LENGTH
Width of track shoe
MAX. LIFTING HEIGHT

MAX. Digging depth

WD10G178E25
131KW/1850RPM
17.0 T
144 KN
4.5 m³

4990X3450X3190 mm

405 mm
2430 mm
560/ 610/ 660 mm
1095 mm
540 mm
WD10G178E25
131KW/1850RPM
17.4 T
144 KN
4.5/ 4.3 m³

5200X3450X3190 mm

405 mm
2635 mm
560/ 610/ 660 mm
1095 mm
540 mm
WD10G178E25
131KW/1850RPM
17.7T
144 KN
4.5/ 4.3 m³

5200X3450X3260 mm

405 mm
2635 mm
560/ 610/ 660 mm
1095 mm
540 mm
WD10G178E25
131KW/1850RPM
17.5 T
144 KN
5.0 m³

4990X3550X3190 mm

405 mm
2430 mm
560/ 610/ 660 mm
1095 mm
540 mm
WD10G178E25
131KW/1850RPM
18.4 T
144 KN
3.8 m³

5176X4190X3190 MM

492 mm
2935 mm
950/ 1100 mm
1005 mm
485 mm
WD10G178E25
131KW/1850RPM
18.6 T
144 KN
8.3 m³

5176X4190X3190 MM

492 mm
2935 mm
950/ 1100 mm
1005 mm
485 mm

COMPARE MODELS

HYDRO-MECHANICAL BULLOZERS—td22 platform

TD22
TD22E
TD22F
TD22C
TD22S
TD22R
ENGINE MODEL
RATED POWER
OPERATING WEIGHT

Tractive force

Dozing capacity
Dimension (NO RIPPER)
Ground clearance
GROUNDING LENGTH
Width of track shoe
MAX. LIFTING HEIGHT

MAX. Digging depth

NT855-C280S10
175KW/1800RPM
23.4 T
203 KN
6.4/ 4.7/ 7.5/ 7.0 m³

5420X3725X3480 mm

405 mm
2730 mm
560/ 610/ 660 mm
1210 mm
540 mm
NT855-C280S10
175KW/1800RPM
24.5 T
203 KN
6.4/ 4.7/ 7.5/ 7.0 m³

5640X3725X3480 mm

405 mm
3050 mm
560/ 610/ 660 mm
1210 mm
540 mm
NT855-C280S10
175KW/1800RPM
24.7T
203 KN
6.4/ 4.7/ 7.5/ 7.0 m³

5420X3725X3530 mm

405 mm
3050 mm
560/ 610/ 660 mm
1210 mm
540 mm
NT855-C280S10
175KW/1800RPM
24.0 T
203 KN
8.5 m³

5420X4200X3480 mm

405 mm
2730 mm
560/ 610/ 660 mm
1210 mm
540 mm
NT855-C280S10
175KW/1800RPM
25.7 T
203 KN
6.8 m³

6290X4365X3480 MM

405 mm
3840 mm
910 mm
1330 mm
550 mm
NT855-C280S10
175KW/1800RPM
26.1 T
203 KN
12.0 m³

6290X4365X3480 MM

405 mm
3840 mm
910 mm
1330 mm
550 mm

COMPARE MODELS

HYDRO-MECHANICAL BULLOZERS—TD35 PLATFORM

D350
TD35
TD35D
TD35R
TD35W
ENGINE MODEL
RATED POWER
OPERATING WEIGHT

Tractive force

Dozing capacity
Dimension (NO RIPPER)
Ground clearance

Ground length

WIDTH OF TRACK SHOE
MAX. LIFTING HEIGHT
MAX. Digging depth
cummins nt855-c360s10
257KW/1800RPM
36.1 T
318 KN
11.7 m³

6840X4150X3600 mm

500 mm
3150 mm
950 mm
1560 mm
560 mm
cummins nt855-c360s10
257KW/1800RPM
35.1 T
318 KN
10/ 6.2/ 16.2/ 11.7 m³

6840X4150X3600 MM

500 mm
3150 mm
560 mm
1560 mm
560 mm
cummins nt855-c360s10
257KW/1800RPM
35.5 T
318 KN
10/ 6.2/ 16.2/ 11.7 m³

6840X4150X3600 MM

500 mm
3150 mm
660 mm
1560 mm
560 mm
cummins nt855-c360s10
257KW/1800RPM
36.1 T
318 KN
25.5 m³

6290X4365X3480 MM

500 mm
3950 mm
1050 mm
1560 mm
560 mm
cummins nt855-c360s10
257KW/1800RPM
36.5 T
318 KN
10/ 6.2/ 16.2/ 11.7 m³

6840X4150X3600 MM

500 mm
3150 mm
560 mm
1560 mm
560 mm

COMPARE MODELS

HYDRO-MECHANICAL BULLOZERS—td26 platform

TD26
TD26E
TD26F
TD26C
TD26S
TD26R
ENGINE MODEL
RATED POWER
OPERATING WEIGHT

Tractive force

Dozing capacity
Dimension (NO RIPPER)
Ground clearance
GROUNDING LENGTH
Width of track shoe
MAX. LIFTING HEIGHT

MAX. Digging depth

CUMMINS NT855-C280
187KW/1800RPM
23.4 T
203 KN
6.4/ 4.7/ 7.5/ 7.0 m³

5420X3725X3480 mm

405 mm
2730 mm
560/ 610/ 660 mm
1210 mm
540 mm
CUMMINS NT855-C280
187KW/1800RPM
24.5 T
203 KN
6.4/ 4.7/ 7.5/ 7.0 m³

5640X3725X3480 mm

405 mm
3050 mm
560/ 610/ 660 mm
1210 mm
540 mm
CUMMINS NT855-C280
187KW/1800RPM
24.7T
203 KN
6.4/ 4.7/ 7.5/ 7.0 m³

5420X3725X3530 mm

405 mm
3050 mm
560/ 610/ 660 mm
1210 mm
540 mm
CUMMINS NT855-C280
187KW/1800RPM
24.0 T
203 KN
8.5 m³

5420X4200X3480 mm

405 mm
2730 mm
560/ 610/ 660 mm
1210 mm
540 mm
CUMMINS NT855-C280
187KW/1800RPM
25.7 T
203 KN
6.8 m³

6290X4365X3480 MM

405 mm
3840 mm
910 mm
1330 mm
550 mm
CUMMINS NT855-C280-B
187KW/1800RPM
26.1 T
203 KN
12.0 m³

6290X4365X3480 MM

405 mm
3840 mm
910 mm
1330 mm
550 mm
